SKP-L45-S1 Kablo Kesiti 95 mm M12 Sıkmalı Kablo Pabucu
| ÜRÜN KODU | KABLO KESİTİ | METRİK | BOYUTLAR | KUTU ADEDİ | KUTU AĞIRLIĞI | KOLİ ADEDİ |
KOLİ AĞIRLIĞI |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

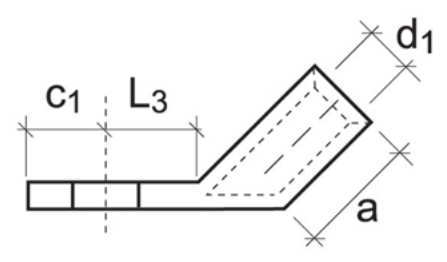

| d1 | d4 | a | d2 | b | c1 | L3 | ||||||||
| SKP-L45-S1/006-M05 | 6 | M5 | 3,5 | 6,5 | 9,0 | 5,5 | 10,0 | 7,5 | 9,0 | 600 | ~ 3,6 kg. | 3.600 | ~21,6 kg | |
| SKP-L45-S1/006-M06 | M6 | 3,5 | 6,5 | 9,0 | 6,5 | 12,0 | 7,5 | 10,0 | 600 | ~ 3,7 kg. | 3.600 | ~22,2 kg | ||
| SKP-L45-S1/006-M08 | M8 | 3,5 | 6,5 | 9,0 | 8,5 | 14,0 | 10,0 | 13,0 | 600 | ~ 3,8 kg. | 3.600 | ~22,8 kg | ||
| SKP-L45-S1/010-M05 | 10 | M5 | 4,5 | 7,5 | 10,0 | 5,5 | 12,0 | 6,5 | 10,0 | 500 | ~2,4 kg. | 3.000 | ~14,4 kg | |
| SKP-L45-S1/010-M06 | M6 | 4,5 | 7,5 | 10,0 | 6,5 | 12,0 | 6,5 | 10,0 | 500 | ~2,8 kg. | 3.000 | ~16,8 kg | ||
| SKP-L45-S1/010-M08 | M8 | 4,5 | 7,5 | 10,0 | 8,5 | 15,0 | 10,0 | 13,0 | 400 | ~3,6 kg. | 2,400 | ~21,6 kg | ||
| SKP-L45-S1/016-M05 | 16 | M5 | 5,5 | 8,5 | 13,0 | 5,5 | 12,0 | 7,5 | 10,0 | 300 | ~3,1 kg. | 1,800 | ~18,6 kg | |
| SKP-L45-S1/016-M06 | M6 | 5,5 | 8,5 | 13,0 | 6,5 | 12,0 | 7,5 | 11,0 | 300 | ~3,1 kg. | 1,800 | ~18,6 kg | ||
| SKP-L45-S1/016-M08 | M8 | 5,5 | 8,5 | 13,0 | 8,5 | 15,0 | 10,0 | 13,0 | 250 | ~2,9 kg. | 1,500 | ~17,4 kg | ||
| SKP-L45-S1/016-M10 | M10 | 5,5 | 8,5 | 13,0 | 10,0 | 17,0 | 12,0 | 15,0 | 200 | ~3,2 kg. | 1,200 | ~19,2 kg | ||
| SKP-L45-S1/025-M05 | 25 | M5 | 7,0 | 10,0 | 15,0 | 5,5 | 14,0 | 7,5 | 11,0 | 200 | ~3,9 kg. | 1,200 | ~23,4 kg | |
| SKP-L45-S1/025-M06 | M6 | 7,0 | 10,0 | 15,0 | 6,5 | 14,0 | 7,5 | 11,0 | 200 | ~2,8 kg. | 1,200 | ~16,8 kg | ||
| SKP-L45-S1/025-M08 | M8 | 7,0 | 10,0 | 15,0 | 8,5 | 16,0 | 10,0 | 13,0 | 200 | ~3,0 kg. | 1,200 | ~18,0 kg | ||
| SKP-L45-S1/025-M10 | M10 | 7,0 | 10,0 | 15,0 | 10,5 | 18,0 | 12,0 | 15,0 | 150 | ~2,5 kg. | 900 | ~15,0 kg | ||
| SKP-L45-S1/025-M12 | M12 | 7,0 | 10,0 | 15,0 | 13,0 | 19,0 | 13,0 | 18,0 | 150 | ~2,5 kg. | 900 | ~15,0 kg | ||
| SKP-L45-S1/035-M06 | 35 | M6 | 8,5 | 12,0 | 17,0 | 6,5 | 17,0 | 7,5 | 11,0 | 125 | ~3,0 kg. | 750 | ~18,0 kg | |
| SKP-L45-S1/035-M08 | M8 | 8,5 | 12,0 | 17,0 | 8,5 | 17,0 | 10,0 | 13,0 | 125 | ~3,0 kg. | 750 | ~18,0 kg | ||
| SKP-L45-S1/035-M10 | M10 | 8,5 | 12,0 | 17,0 | 10,5 | 19,0 | 12,0 | 15,0 | 100 | ~2,5 kg. | 600 | ~15,0 kg | ||
| SKP-L45-S1/035-M12 | M12 | 8,5 | 12,0 | 17,0 | 13,0 | 21,0 | 13,0 | 18,0 | 80 | ~2,4 kg. | 480 | ~14,4 kg | ||
| SKP-L45-S1/050-M06 | 50 | M6 | 10,0 | 14,0 | 19,0 | 6,5 | 20,0 | 10,0 | 13,0 | 80 | ~2,9 kg. | 480 | ~17,4 kg | |
| SKP-L45-S1/050-M08 | M8 | 10,0 | 14,0 | 19,0 | 8,5 | 20,0 | 10,0 | 13,0 | 80 | ~2,9 kg. | 480 | ~17,4 kg | ||
| SKP-L45-S1/050-M10 | M10 | 10,0 | 14,0 | 19,0 | 10,5 | 20,0 | 12,0 | 16,0 | 80 | ~3,0 kg. | 480 | ~18,0 kg | ||
| SKP-L45-S1/050-M12 | M12 | 10,0 | 14,0 | 19,0 | 13,0 | 23,0 | 13,0 | 18,0 | 70 | ~3,0 kg. | 420 | ~18,0 kg | ||
| SKP-L45-S1/070-M06 | 70 | M6 | 12,0 | 16,5 | 21,0 | 6,5 | 23,0 | 10,0 | 13,0 | 60 | ~3,2 kg. | 360 | ~19,2 kg | |
| SKP-L45-S1/070-M08 | M8 | 12,0 | 16,5 | 21,0 | 8,5 | 23,0 | 10,0 | 14,0 | 60 | ~3,0 kg. | 360 | ~18,0 kg | ||
| SKP-L45-S1/070-M10 | M10 | 12,0 | 16,5 | 21,0 | 10,5 | 23,0 | 12,0 | 16,0 | 60 | ~3,2 kg. | 360 | ~19,2 kg | ||
| SKP-L45-S1/070-M12 | M12 | 12,0 | 16,5 | 21,0 | 13,0 | 23,0 | 13,0 | 18,0 | 50 | ~2,7 kg. | 360 | ~16,2 kg | ||
| SKP-L45-S1/095-M08 | 95 | M8 | 13,5 | 18,0 | 25,0 | 8,5 | 26,0 | 12,0 | 14,0 | 40 | ~2,5 kg. | 240 | ~15,0 kg | |
| SKP-L45-S1/095-M10 | M10 | 13,5 | 18,0 | 25,0 | 10,5 | 26,0 | 12,0 | 17,0 | 40 | ~2,6 kg. | 240 | ~15,6 kg | ||
| SKP-L45-S1/095-M12 | M12 | 13,5 | 18,0 | 25,0 | 13,0 | 26,0 | 13,0 | 18,0 | 40 | ~2,8 kg. | 240 | ~16,8 kg | ||
| SKP-L45-S1/095-M16 | M16 | 13,5 | 18,0 | 25,0 | 17,0 | 28,0 | 16,0 | 22,0 | 40 | ~2,8 kg. | 240 | ~16,8 kg | ||
| SKP-L45-S1/120-M08 | 120 | M8 | 15,0 | 19,5 | 26,0 | 8,5 | 28,0 | 14,0 | 16,0 | 30 | ~2,3 kg. | 180 | ~13,8 kg | |
| SKP-L45-S1/120-M10 | M10 | 15,0 | 19,5 | 26,0 | 10,5 | 28,0 | 14,0 | 17,0 | 30 | ~2,3 kg. | 180 | ~13,8 kg | ||
| SKP-L45-S1/120-M12 | M12 | 15,0 | 19,5 | 26,0 | 13,0 | 28,0 | 14,0 | 18,0 | 30 | ~2,3 kg. | 180 | ~13,8 kg | ||
