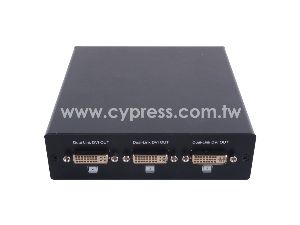

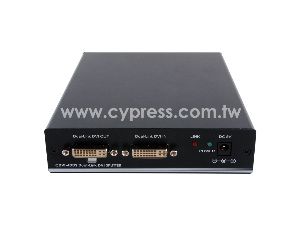

Cypress CDVI-4DDS 1*4 DVI Dual Link Splitter

The CDVI-4DDS is a DL-DVI splitter which can connect one computer with dual-link DVI output to four DVI displays at the same time. Flexible to different setups as the device is able to distribute digital video signal of either dual-link DVI or single-link DVI, with a maximum pixel clock/bandwidth at 330 MHz for the former and 165 MHz for the later. Multiple displays can be accommodated when two devices are cascaded (connected together). Auto-EDID management is built-in and EDID data of the primary display (the display on output 1 or the only connected display) will be passed to the source.

• Commercial advertising, displaying
• Lecture room display
• Showroom display

FEATURES

• Supports video timing up to WQXGA (2560×1600@60 Hz) on Dual-link or WUXGA (1920×1200@60 Hz/Reduced Blanking) on Single-link
• Supports long distance transmission with built-in adaptive equalizer
• Supports EDID (Extended Display Identification Data) bypass
• Supports HPD (Hot Plug Detection) on each port individually
